Description

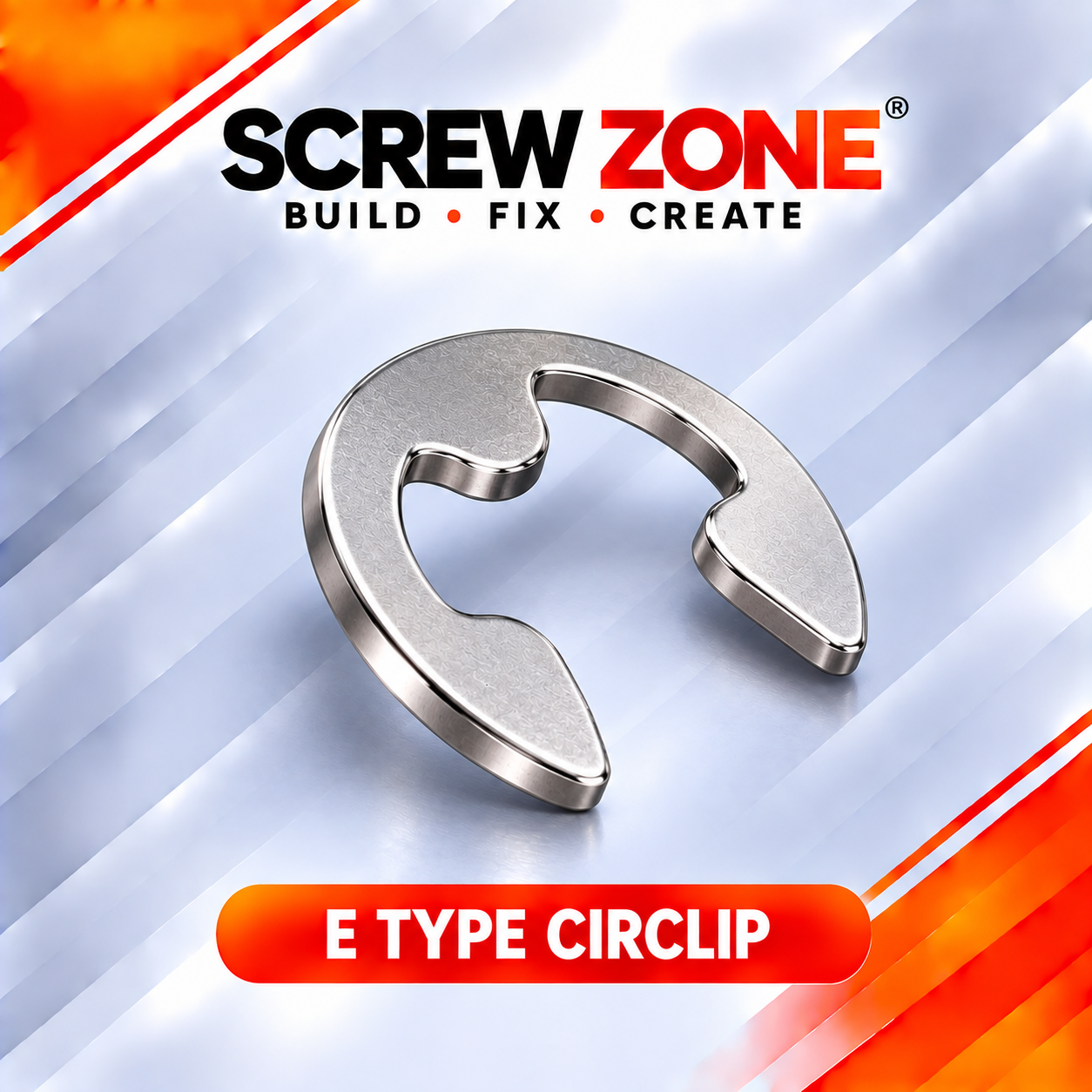

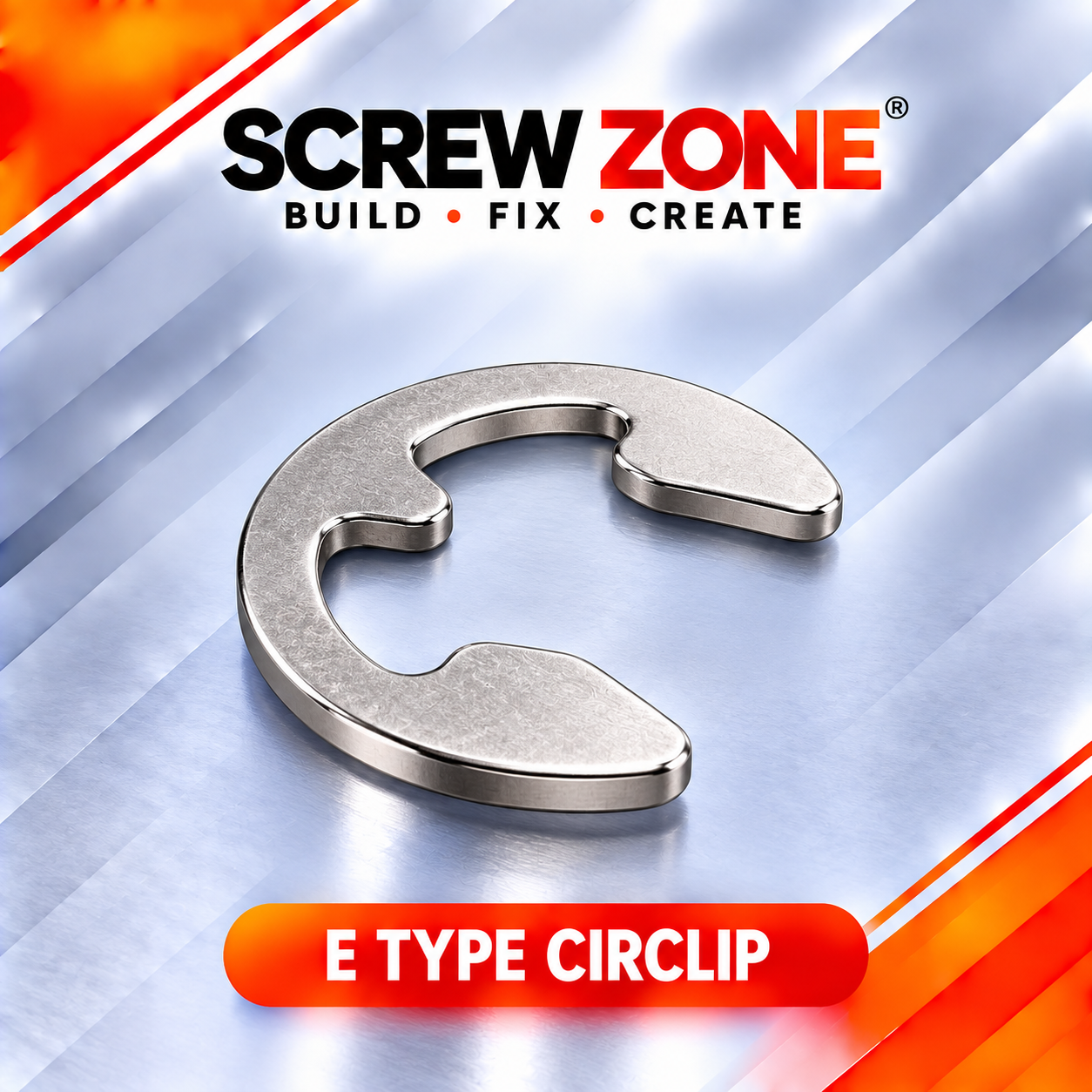

3.2mm SS E-Type Circlip DIN 6799, also known as an E-Clip, E-Ring or Shaft Retaining Ring, is a compact securing element designed for axial retention of components mounted on a shaft.
The distinctive E-shaped profile allows the retaining ring to be installed radially into a correctly dimensioned groove on the shaft. Unlike many conventional circlips, the E-clip does not need to be slid over the end of the shaft, which can make installation convenient in compact assemblies.
Once correctly seated in the groove, the circlip forms a retaining shoulder that helps restrict axial movement of compatible components such as gears, washers, rollers, linkages and spacers.
This 3.2mm Stainless Steel E-Type Circlip is suitable for compatible machinery, automotive assemblies, motors, appliances, gear mechanisms, linkages, shafts, industrial equipment and general engineering applications.
Product Highlights:
Stainless Steel • 3.2mm Nominal Size • E-Type Circlip • DIN 6799 • E-Clip / E-Ring • Shaft Groove Mounting • Radial Installation • Axial Retention • Compact Industrial Fastener
